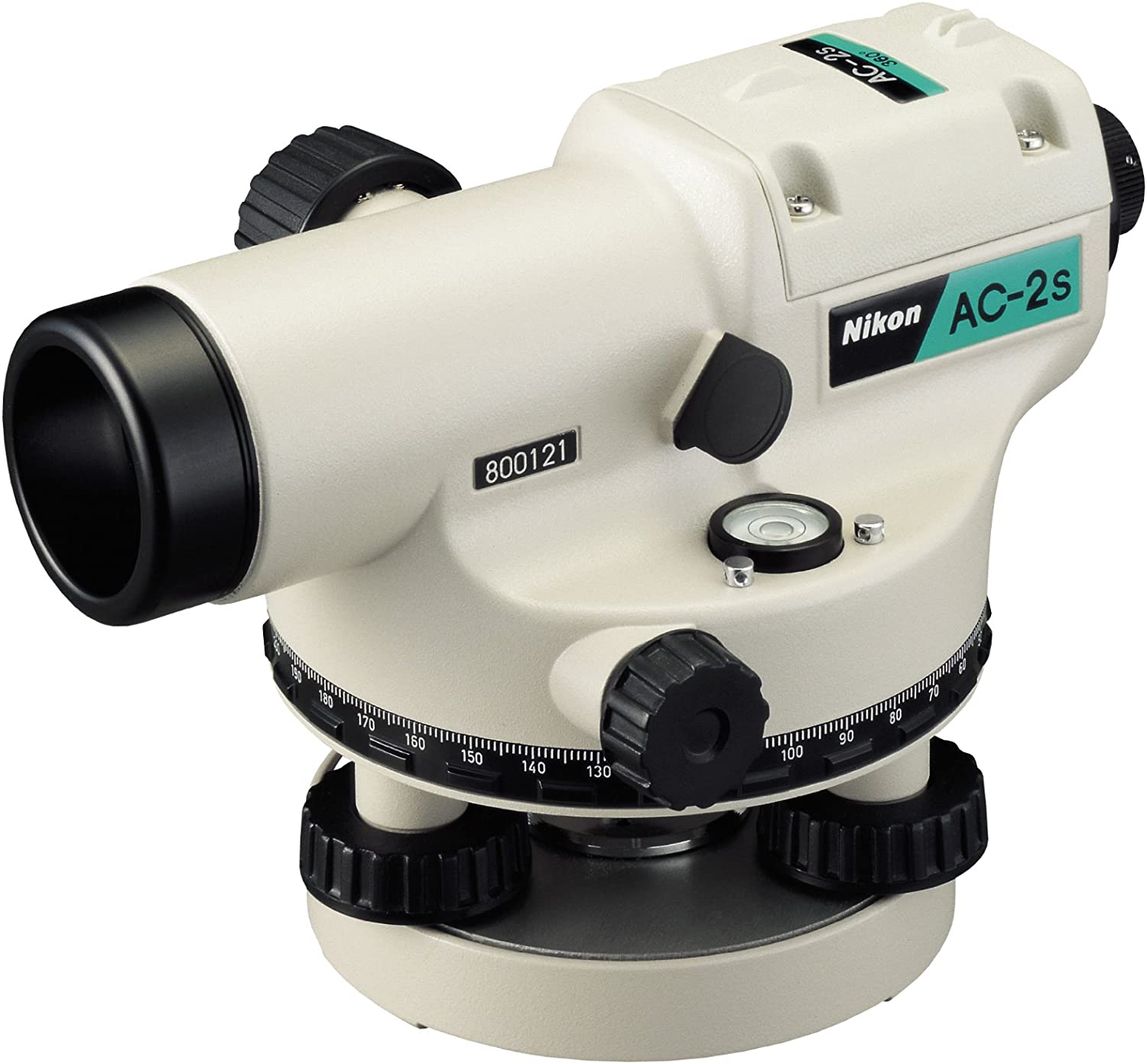

NIKON AC-2S TOTAL STATION
DESCRIPTION
Nikon AC 2S Automatic Optical Level
We have used Nikon AC Series total station auto levels are easy to set up and ready to use. In this total station there are lots of features like horizontal tangent knobs with an unlimited range ensure smooth, precise pointing and angular measurement and you can operate them with either hand.
We also have total station with detachable eyepiece lens lets used an optional diagonal eyepiece prism for working in extremely close or steep quarters.
MODEL: NIKON AC 2S
PRODUCT CODE: NIKON AC 2S
BRAND NAME: NIKON AC 2S
AVAILABILITY: YES
TECHNICAL SPECIFICATIONS
- Leveling Accuracy ± 2.0mm
- Telescope Magnification 24x
- Minimum focusing distance – 2.46ft (0.75m)
- Double-sided, continuous horizontal tangent drives
- Stadia lines for simple distance measurement
- Convenient horizontal angle measurement
- Built in bubble mirror and optical sighting alignments
- Metal housing increases durability
- Choice of water resistant or waterproof construction
- Nikon optics effectively let in more light, so you see brighter, sharper images-especially in low-light conditions
FEATURES & BENEFITS
The Nikon® AP-8/AC-2S/AX-2S automatic levels from Tripod Data Systems™ (TDS) deliver a high level of accuracy and ease of use for a variety of civil engineering and construction applications.
Compact and lightweight, they are also built rugged and water resistant, giving you reliable performance in light rain or dusty job sites. Nikon’s world-renowned optics provide brighter, clearer images and an improved minimum focusing distance for working in confined spaces. Plus, a built-in magnetic-dampened compensator automatically levels the line of sight.
SPECIFICATIONS
Specifications of Nikon AC-2S Surveyors Optical Level |
|
|---|---|
| Telescope | |
| Tube length | 190 mm (7.5 in) |
| Image | erect |
| Magnification | 24x |
| Effective diameter of objective lens | 30 mm (1.2 in) |
| Field of view | 1°30′(2.6 ft @ 100 ft) |
| Minimum focusing distance | 0.75 m (2.46 ft) |
| Stadia ratio | 1:100 |
| Stadia additive constant | 0 |
| Level Vial Sensitivity | |
| Circular level | 10’/2 mm |
| Standard Deviation | |
| (1 km double-run leveling) Without micrometer | ±2.0 mm |
| Automatic Compensator | |
| Type | wire-hung, magnetic damper |
| Compensation range | ±16′ |
| Setting accuracy | ±0.5″ |
| Horizontal Circle | |
| Diameter of circle | 110 mm (4.3 in) |
| Minimum increment | 1°/1 g |
| Reading estimation | 0.1°/0.1g |
| Dimensions | |
| Instrument (L x H x W) | 190 x 128 x 123 mm (7.5 x 5.0 x 4.8 in) |
| Carrying case | 292 x 170 x 163 mm (11.5 x 6.7 x 6.4 in) |
| Weight | |
| 1.25 kg (2.8 lb) | 110 mm (4.3 in) |
| Carrying case | 1.2 kg (2.7 lb) |
