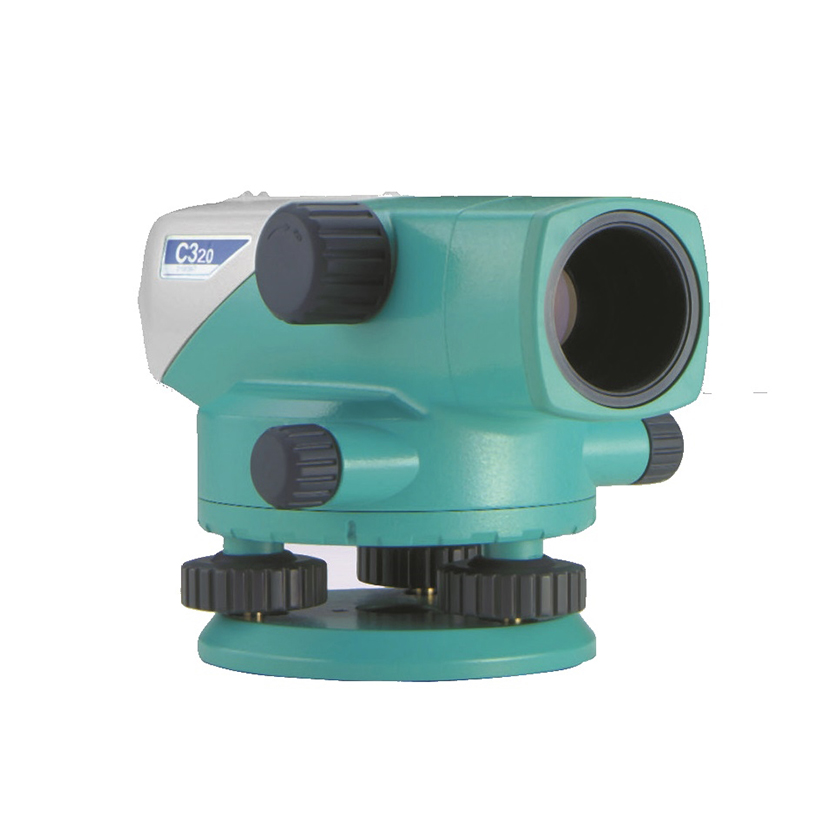

SOKKIA C320 AUTO LEVEL

DESCRIPTION

SOKKIA C320 Auto Level

Falcon Geomatics has a used Sokkia’s C320 automatic levels for are compact, solid, fast and very user-friendly. For a start, setting up the levels can be done fast and quickly and sighting is just as simple.

Moreover, the C3 Series automatic levels guarantee superior performance regardless of weather conditions.

MODEL: SOKKIA C320 AUTO LEVEL

PRODUCT CODE: SOKKIA C320

BRAND NAME: SOKKIA

AVAILABILITY: YES

TECHNICAL SOKKIA C320

FEATURES & BENEFITS

PRODUCT SPECIFICATION

Product Model	SOKKIA C320
TELESCOPE
Length	210 mm
Objective aperture	3200
Magnification	24X
Image	Erect
Resolving Power	4.0”
Field of View	1°25’
Minimum focusing distance	0.3m (1.0ft)
Reticle	Cross Hairs
Stadia multiplication constant	100
Stadia additive constant	0
Coarse sighting	Gun sight

Compensator
Damping system	Magnetic
Working range	±15’
Setting accuracy	0.5”

Leveling Accuracy
Standard deviation for 1km double-run leveling	2.0mm (0.08 in)

Horizontal Circle
Diameter	103mm (4.1in.)
Graduation / Estimation	1°(1gon) / 0.1°(0.1gon)

General
Sensitivity of circular level	10’/2mm
Mirror for circular level	Plane mirror
Horizontal fine motion screws	Double-sided endless drive
Water resistance	Conforms to IPX4 (IEC 60529)
Base	Concave and flat
Base screw	Ø5/8 in.
Size (WDH)	133215135 mm
Weight Approx.	1.7 kg
